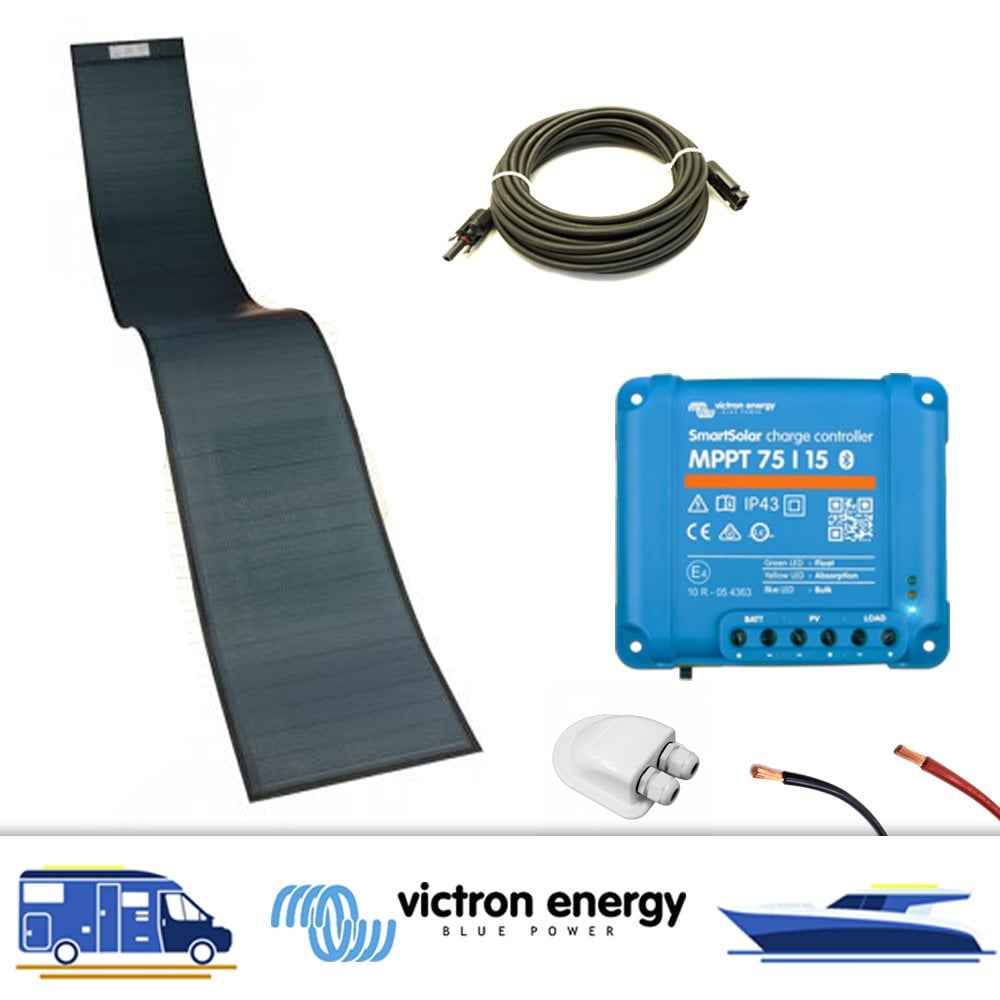

Victron 170w CIGs Solar Panel Custom Peel & Stick Solution Kit

This Victron kit combines a 170 W CIGS solar panel with a SmartSolar MPPT 75/15 charge controller. The bespoke panel is self-adhesive and uses a peel-and-stick design for marine applications. It is made to order, and the desired panel width and length must be confirmed after placing the order.

Three panel size options are available: 682 × 1919 mm, 1002 × 1302 mm, or 362 × 3684 mm. The panel has top-side junction boxes with MC4 connections.

• Victron SmartSolar MPPT 75/15 controller with Bluetooth connectivity and VictronConnect app support
• Controller maximum open-circuit voltage: 75 V
• Controller maximum charge current: 15 A
• Included: 10 m MC4 solar cable, double-entry cable gland, 5 m 6 mm² black flexible cable and 5 m 6 mm² red flexible cable
• The 6 mm² cable is rated at 50 A and is for solar panels and a Victron MPPT

The controller gathers energy from the panels to store in a battery bank. Its load output can be configured to disconnect a load at a selected voltage. The controller also supports remote monitoring and control using the VictronConnect app; an internet-connected GX device enables access through the Victron Remote Management Portal.
