Sealey TA302 12 Function IC Digital Automotive Multimeter
See more photos

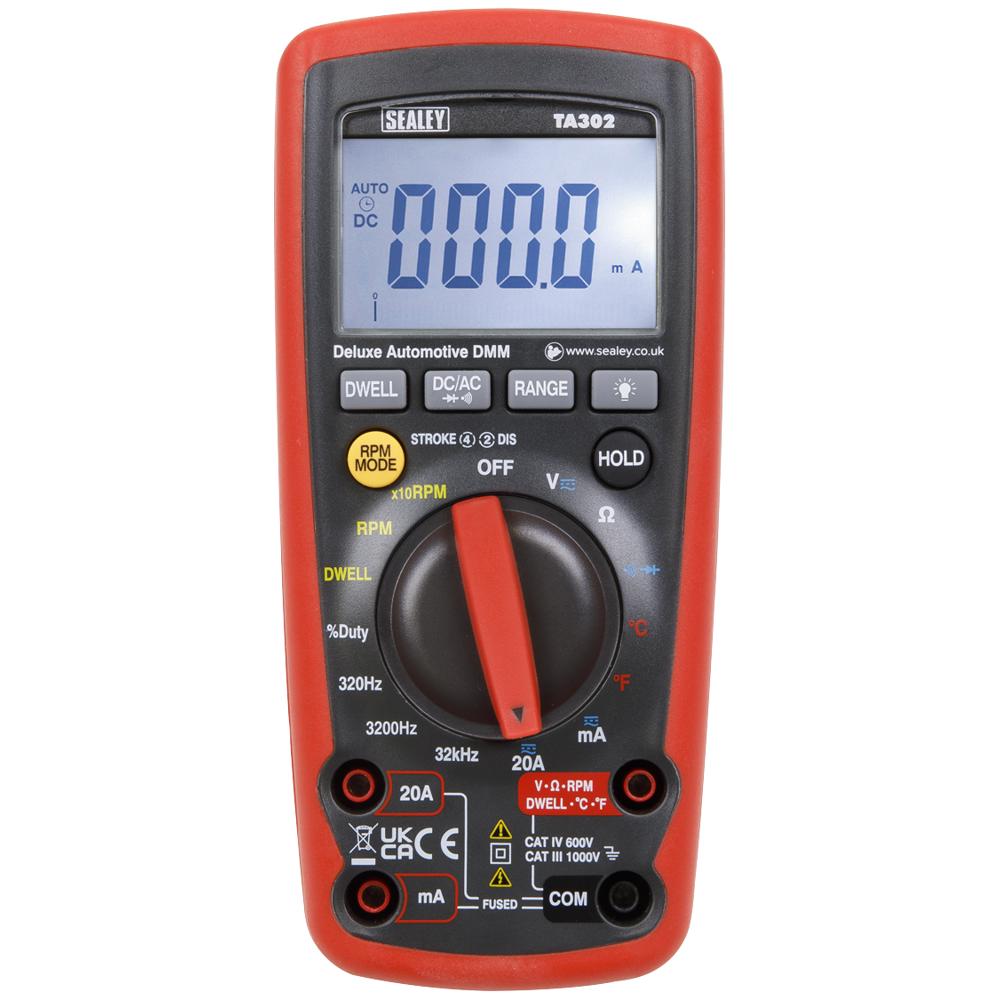

Sealey TA302 12 Function IC Digital Automotive Multimeter

Lowest price we found

£106.95

Tooled Up Delivery £5.95
Go to shop
  • Extensive range of tools at competitive prices.
  • Fast dispatch with proactive order updates.
  • Responsive customer service and hassle-free replacements.

About the product

The Sealey TA302 is a 12-function automotive digital multimeter for vehicle testing and diagnostics. It measures engine RPM, dwell angle and duty cycle, as well as voltage, current, resistance, frequency and temperature.

Auto-ranging covers AC voltage from 3.2V to 600V and DC voltage from 320mV to 600V. AC and DC current ranges run from 320µA to 10A; resistance ranges from 320O to 32MO. Frequency ranges are 320Hz, 3200Hz and 32kHz, and temperature measurement runs from -20°C to +760°C.

  • RPM readings cover 4–8-cylinder, 2- and 4-stroke configurations: 600–4000 (x1)rpm and 600–12000 (x10)rpm.
  • Dwell ranges: 4-cylinder 0–90°, 5-cylinder 0–72°, 6-cylinder 0–60° and 8-cylinder 0–45°.
  • Digital and bar graph display with 18mm digits and a bright white backlight.
  • Features include overload protection on all ranges, data hold, a continuity buzzer activated below 35O and diode check.
  • The hi-impact case has an integral stand. Nett weight is 366g.
  • Supplied with an inductive coupler, test probes, thermocouple and 9V PP3 battery; low-battery indication is included.

At a glance

  • Measures engine RPM, dwell angle and duty cycle
  • Auto-ranging for voltage, current, resistance and frequency
  • 18mm digital and bar graph display with white backlight
  • Includes inductive coupler, test probes, thermocouple and 9V battery
  • Overload protection, data hold, continuity buzzer and diode check

Specifications12

Sealey
In the box
Inductive coupler, test probes, thermocouple and 9V PP3 battery
Functions
12
Display
Digital and bar graph display; 18mm digits; white backlight
Measurement functions
DC and AC voltage, AC and DC current, resistance, frequency, temperature, duty cycle, dwell angle and engine RPM
Voltage ranges
AC: 3.2V, 32V, 320V, 600V; DC: 320mV, 3.2V, 32V, 320V, 600V
Current ranges
AC and DC: 320µA, 3200µA, 32mA, 320mA, 10A
Resistance range
320O to 32MO
Other measurement ranges
Frequency: 320Hz, 3200Hz, 32kHz; temperature: -20°C to +760°C
RPM and dwell
RPM for 4–8 cylinders, 2- and 4-stroke; dwell ranges stated for 4-, 5-, 6- and 8-cylinder configurations
Additional functions
Auto-ranging, overload protection, data hold, continuity buzzer and diode check
Case
Hi-impact case with integral stand
Weight
366g
