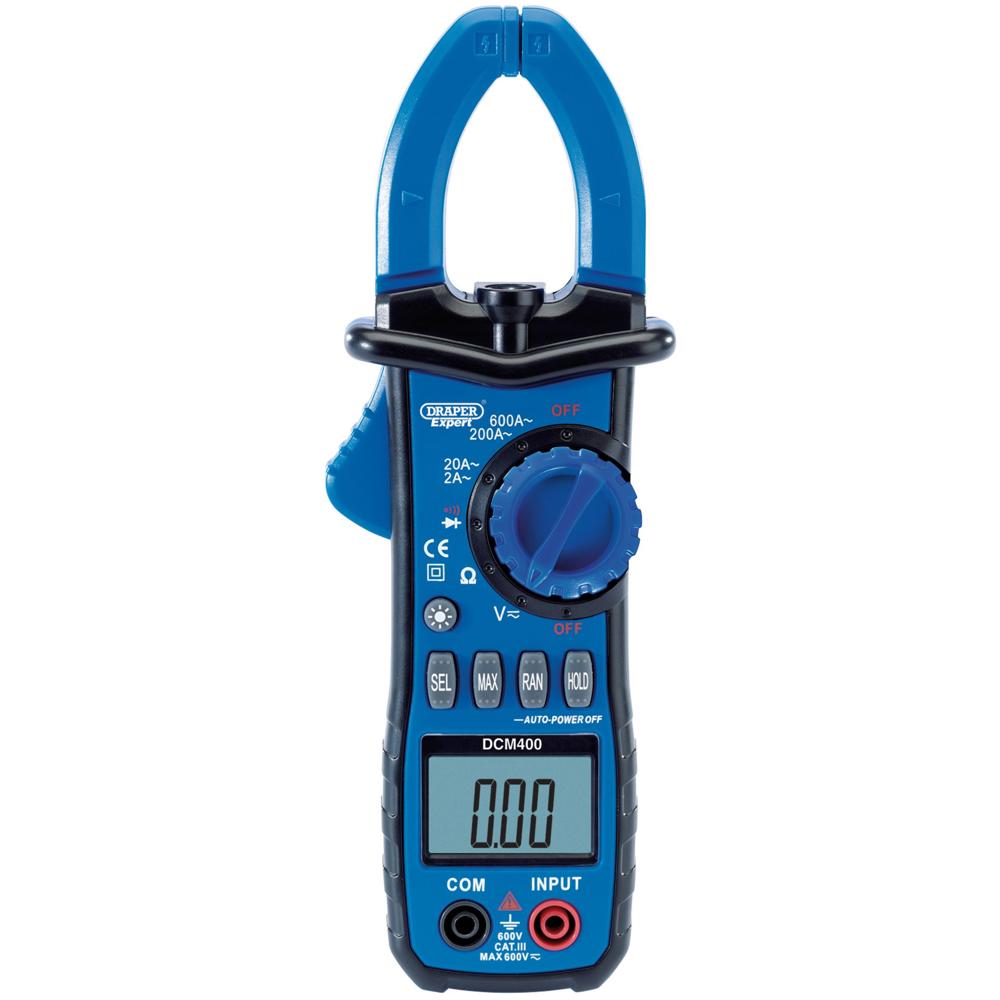

Draper DCM400 Digital Clamp Meter
See more photos

Draper DCM400 Digital Clamp Meter

Lowest price we found

£39.95

Tooled Up Delivery £5.95
Go to shop
  • Extensive range of tools at competitive prices.
  • Fast dispatch with proactive order updates.
  • Responsive customer service and hassle-free replacements.

About the product

The Draper DCM400 is a digital clamp meter for measuring voltage, current, resistance and circuit continuity in AC electrical systems. It has auto and manual ranging, with AC current ranges of 2 A, 20 A, 200 A and 600 A, and AC and DC voltage ranges from 200 mV to 600 V.

The meter has a maximum jaw opening of 36 mm, a backlit LCD and an integrated inspection light. Its functions include diode testing, continuity checking, data hold and duty ratio. Automatic power-off helps conserve battery life.

  • Resistance ranges from 200 Ω to 20 MΩ
  • Uses 3 x AAA batteries, not supplied
  • Dimensions: 228 mm x 156 mm x 62 mm; weight: approximately 480 g
  • Supplied with test leads and a protective carry case

At a glance

  • Measures AC current up to 600 A
  • Measures AC and DC voltage up to 600 V
  • 36 mm maximum jaw opening
  • Backlit LCD and integrated inspection light

Specifications10

Draper
Dimensions
228 mm x 156 mm x 62 mm
In the box
Test leads, protective carry case
AC current ranges
2 A, 20 A, 200 A and 600 A
AC and DC voltage ranges
200 mV, 2 V, 20 V, 200 V and 600 V
Resistance range
200 Ω to 20 MΩ
Maximum jaw opening
36 mm
Display
Backlit LCD
Functions
Diode testing, continuity checking, data hold and duty ratio
Power
3 x AAA batteries, not supplied
Weight
Approximately 480 g

Price history

Price at the shop, last 74 days

The price has stayed at £39.95 since 19 August.
