Draper DMM8 Digital Multimeter
See more photos

Draper DMM8 Digital Multimeter

Lowest price we found

£16.95

Tooled Up Delivery £5.95
Go to shop
  • Extensive range of tools at competitive prices.
  • Fast dispatch with proactive order updates.
  • Responsive customer service and hassle-free replacements.

About the product

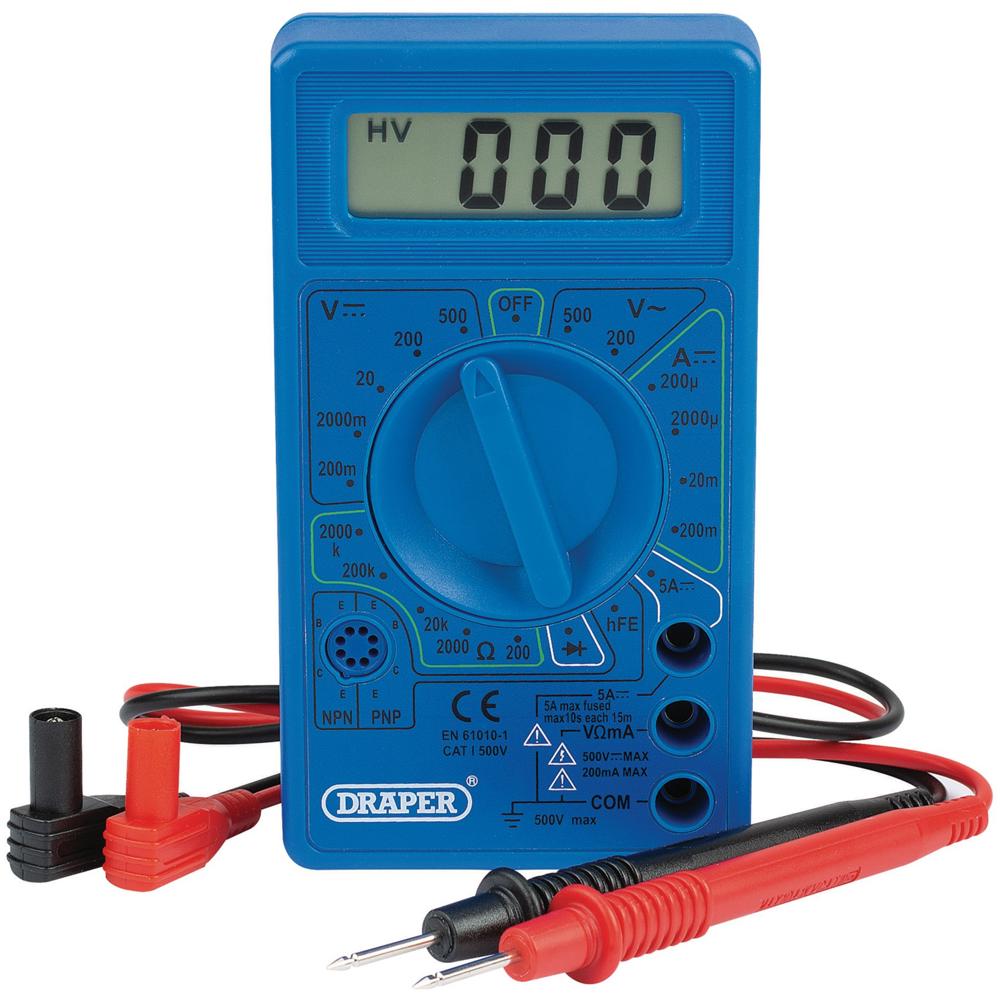

The Draper DMM8 is a digital multimeter for measuring electrical values. Its 20-position rotary selector provides function and range selection, with measurements for AC and DC voltage, DC current and resistance.

AC voltage ranges are 200 V and 500 V; DC voltage ranges are 200 mV, 2000 mV, 20 V, 200 V and 500 V. DC current ranges are 200 µA, 20 mA and 200 mA, while resistance ranges are 200 Ω, 2000 Ω, 20 kΩ, 200 kΩ and 2000 kΩ. Accuracy for these measurements is ±5% of full scale. A built-in battery check facility is also included.

  • Dimensions: 70 x 24 x 126 mm
  • Weight: 150 g
  • Supplied with test probes and leads
  • Requires one 9V PP3 battery, which is not supplied

At a glance

  • 20-position rotary function and range selector
  • Measures AC and DC voltage up to 500 V
  • Measures DC current from 200 µA to 200 mA
  • Built-in battery check facility
  • Supplied with test probes and leads

Specifications10

Draper
Dimensions
70 x 24 x 126 mm
In the box
Digital multimeter, test probes and leads
Selector
20-position rotary function and range selector
AC voltage
200 V and 500 V; accuracy ±5% of full scale
DC voltage
200 mV, 2000 mV, 20 V, 200 V and 500 V; accuracy ±5% of full scale
DC current
200 µA, 20 mA and 200 mA; accuracy ±5% of full scale
Resistance
200 Ω, 2000 Ω, 20 kΩ, 200 kΩ and 2000 kΩ; accuracy ±5% of full scale
Battery check
Built-in battery check facility
Battery
1 x 9V PP3 battery required; not supplied
Weight
150 g

Price history

Price at the shop, last 75 days

The price has stayed at £16.95 since 19 August.
