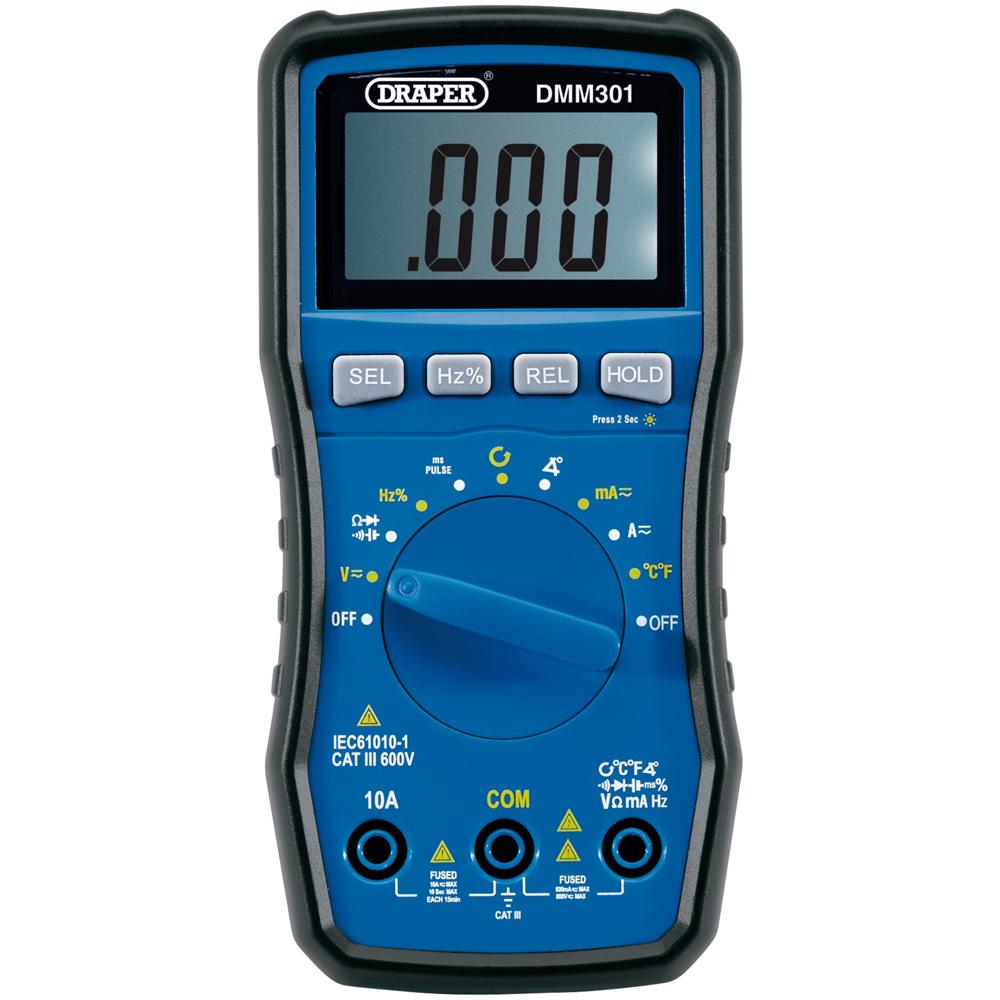

Draper DMM301 Automotive Digital Multimeter
See more photos

Draper DMM301 Automotive Digital Multimeter

Lowest price we found

£76.95

Tooled Up Delivery £5.95
Go to shop
  • Extensive range of tools at competitive prices.
  • Fast dispatch with proactive order updates.
  • Responsive customer service and hassle-free replacements.

About the product

The Draper DMM301 is an automotive digital multimeter for vehicle-system electrical testing and diagnostics. It offers automatic and manual ranging, with AC and DC voltage measurement up to 600 V and current measurement up to 10 A. Resistance measurement ranges from 600 Ω to 60 MΩ, and capacitance from 40 nF to 4000 µF.

Automotive functions include DWELL settings for 4-, 6- and 8-cylinder engines, a tachometer for engine RPM and duty-ratio testing. The included inductive clamp enables non-contact current measurement. A temperature probe measures from −20°C to 1000°C. The backlit LCD, data hold, MAX value capture, continuity buzzer and automatic power-off are additional features.

  • Dimensions: 184 × 186 × 72 mm; weight: approximately 507 g
  • Frequency measurement: 9.999 Hz to 9.999 MHz
  • Supplied with a temperature probe and inductive clamp
  • Requires one PP3 9 V battery, which is not supplied

At a glance

  • Measures AC and DC voltage up to 600 V
  • AC and DC current measurement up to 10 A
  • DWELL settings for 4-, 6- and 8-cylinder engines
  • Tachometer measures engine RPM
  • Includes temperature probe and inductive clamp
  • Backlit LCD, data hold and MAX value capture

Specifications12

Draper
Dimensions
184 × 186 × 72 mm
In the box
Automotive digital multimeter, temperature probe and inductive clamp
Voltage measurement
AC and DC, 6 V / 60 V / 600 V
Current measurement
AC and DC, up to 10 A
Resistance
600 Ω to 60 MΩ
Capacitance
40 nF to 4000 µF
Temperature range
−20°C to 1000°C
Frequency
9.999 Hz to 9.999 MHz
DWELL
4-, 6- and 8-cylinder settings
Tachometer
RPM4: 120–20000; RPM2: 60–20000
Weight
Approximately 507 g
Battery
1 × PP3 9 V battery, not supplied
