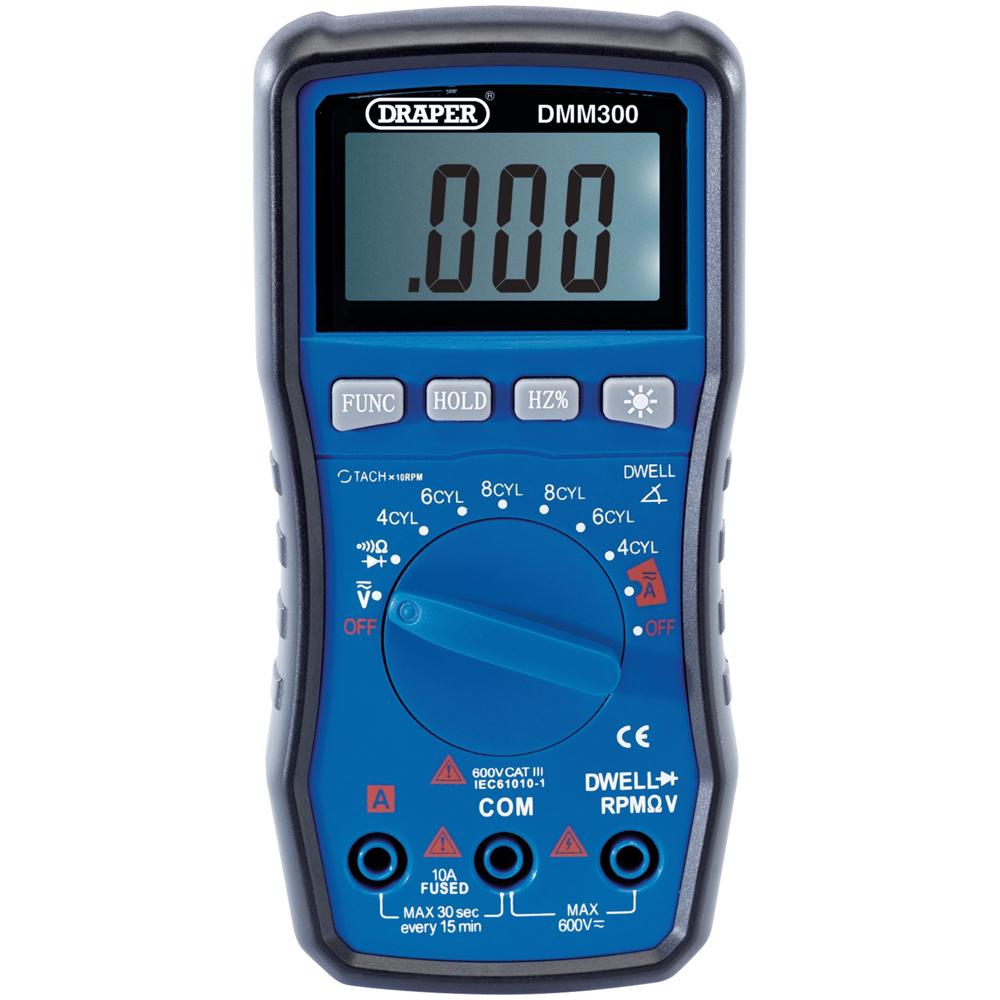

Draper DMM300 Automotive Digital Multimeter
See more photos

Draper DMM300 Automotive Digital Multimeter

Lowest price we found

£39.95

Tooled Up Delivery £5.95
Go to shop
  • Extensive range of tools at competitive prices.
  • Fast dispatch with proactive order updates.
  • Responsive customer service and hassle-free replacements.

About the product

The Draper DMM300 is an automotive digital multimeter for electrical diagnostics on vehicle systems. It offers automatic and manual ranging, with AC and DC voltage ranges of 200 mV, 2 V, 20 V, 200 V and 600 V, and AC and DC current ranges of 2 A and 10 A. Resistance ranges run from 200 Ω to 20 MΩ.

For engine diagnostics, it has DWELL and tachometer functions for 4-, 6- and 8-cylinder engines, as well as duty ratio, diode and continuity testing. The backlit LCD, data hold and MAX function support reading capture; a continuity buzzer provides audible confirmation, and automatic power-off is included.

  • Dimensions: 150 mm × 74 mm × 43 mm; weight: approximately 319 g.
  • Supplied with test leads and a protective carry case.
  • Requires 2 AAA batteries, which are not supplied.

At a glance

  • DWELL and tachometer functions for 4-, 6- and 8-cylinder engines
  • Measures AC and DC voltage, current and resistance
  • Includes duty ratio, diode and continuity testing
  • Backlit LCD, data hold, MAX function and automatic power-off
  • Supplied with test leads and protective carry case

Specifications12

Draper
Dimensions
150 mm × 74 mm × 43 mm
In the box
Test leads; protective carry case
AC and DC voltage ranges
200 mV, 2 V, 20 V, 200 V and 600 V
AC and DC current ranges
2 A and 10 A
Resistance ranges
200 Ω, 2 kΩ, 20 kΩ, 200 kΩ, 2 MΩ and 20 MΩ
Engine functions
DWELL and tachometer functions for 4-, 6- and 8-cylinder engines
Additional measurements and tests
Duty ratio, diode and continuity testing
Ranging
Automatic and manual
Display
Backlit LCD
Reading and power features
Data hold, MAX function, continuity buzzer and automatic power-off
Weight
Approximately 319 g
Batteries
2 × AAA batteries, not supplied

Price history

Price at the shop, last 74 days

The price has stayed at £39.95 since 19 August.
