Draper DMM200 Digital Multimeter
See more photos

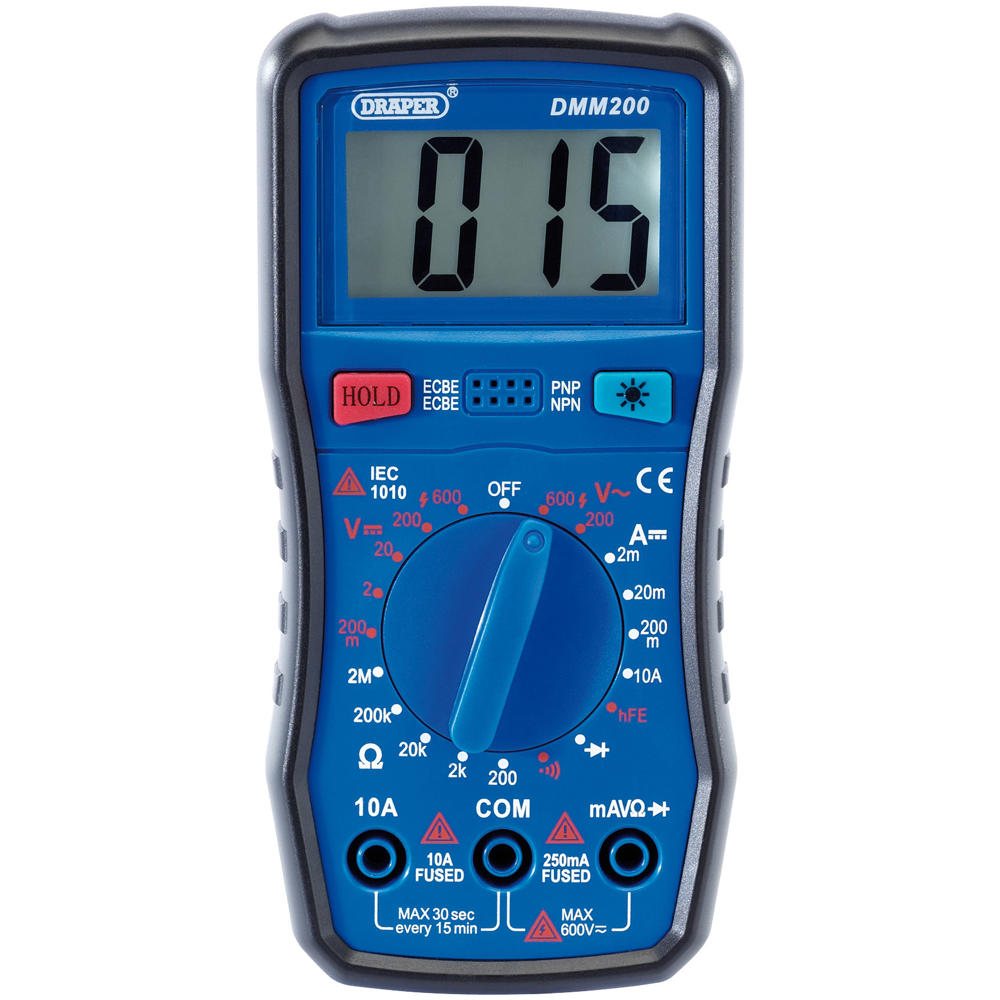

Draper DMM200 Digital Multimeter

Lowest price we found

£26.95

Tooled Up Delivery £5.95
Go to shop
  • Extensive range of tools at competitive prices.
  • Fast dispatch with proactive order updates.
  • Responsive customer service and hassle-free replacements.

About the product

The Draper DMM200 is a manual-ranging digital multimeter for automotive diagnostics and general electrical testing. It measures voltage, current, resistance and hEF, and can be used with DC and AC systems.

Its backlit LCD screen, continuity buzzer and data hold function support measurement and circuit testing. Automatic power-off is also included. The multimeter has diode test and duty ratio measurement functions.

  • DC voltage ranges: 200 mV, 2 V, 20 V, 200 V and 600 V
  • AC voltage ranges: 200 V and 600 V
  • DC current ranges: 2 mA, 20 mA, 200 mA and 10 A
  • Resistance ranges: 200 Ω, 2 kΩ, 20 kΩ, 200 kΩ and 2 MΩ
  • Temperature range: −20°C to 1000°C
  • Dimensions: 150 mm × 74 mm × 43 mm; weight: approximately 233 g

It is supplied with test leads and a protective case. The required battery is one PP3 9 V battery, which is not supplied.

At a glance

  • Measures DC and AC voltage, DC current and resistance
  • Temperature measurement from −20°C to 1000°C
  • Backlit LCD, continuity buzzer and data hold
  • Includes test leads and a protective case

Specifications12

Draper
Dimensions
150 mm × 74 mm × 43 mm
In the box
Test leads and protective case
Ranging
Manual ranging
DC voltage ranges
200 mV, 2 V, 20 V, 200 V and 600 V
AC voltage ranges
200 V and 600 V
DC current ranges
2 mA, 20 mA, 200 mA and 10 A
Resistance ranges
200 Ω, 2 kΩ, 20 kΩ, 200 kΩ and 2 MΩ
Temperature range
−20°C to 1000°C
Functions
Continuity buzzer, data hold, diode test and duty ratio measurement
Display
Backlit LCD
Automatic power-off
Yes
Weight
Approximately 233 g
