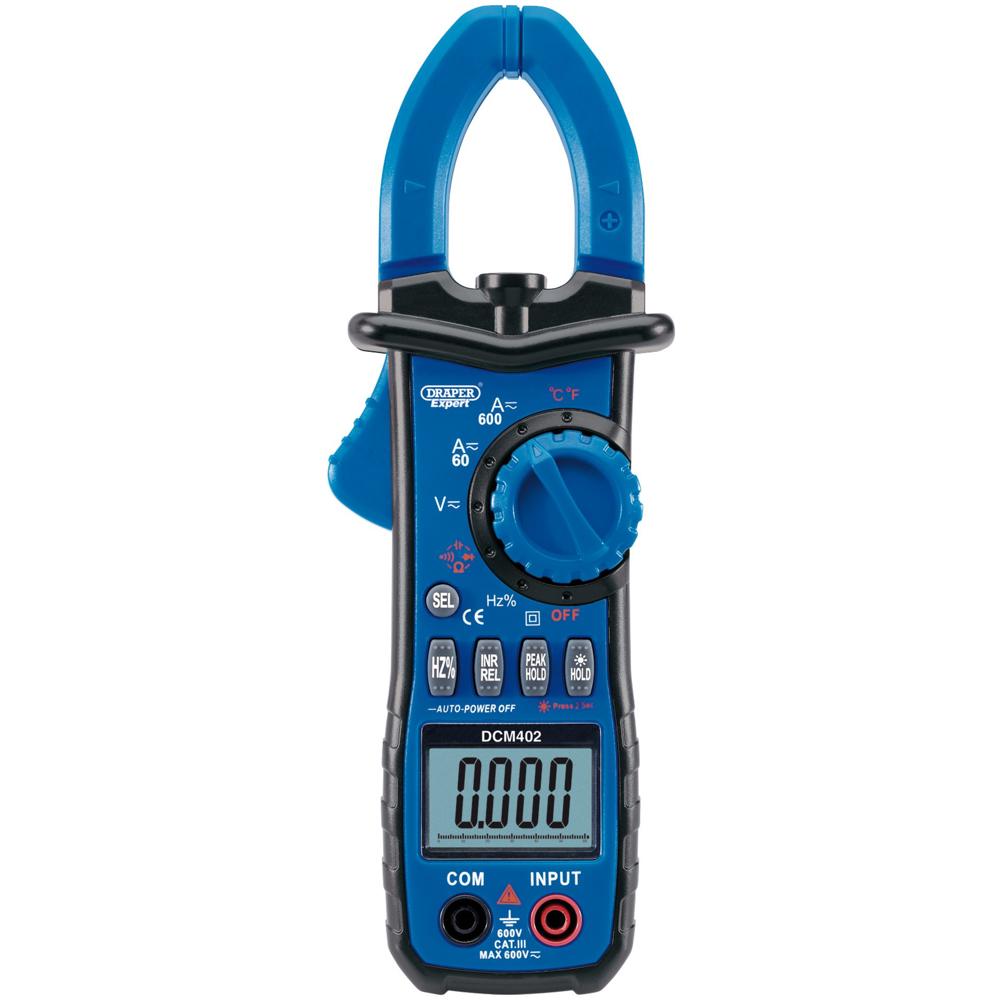

Draper DCM402 Digital Clamp Meter
See more photos

Draper DCM402 Digital Clamp Meter

Lowest price we found

£78.95

Tooled Up Delivery £5.95
Go to shop
  • Extensive range of tools at competitive prices.
  • Fast dispatch with proactive order updates.
  • Responsive customer service and hassle-free replacements.

About the product

The Draper DCM402 is a digital clamp meter for electrical testing, with auto and manual ranging modes. It measures AC and DC current up to 600 A, AC voltage up to 600 V and DC voltage up to 600 V, as well as resistance. Its additional testing functions include capacitance, frequency, duty cycle, diode testing and temperature testing.

The meter has a 36 mm maximum jaw opening, a backlit LCD display, an inspection light and a linear bar graph. Auto power-off is included. Its dimensions are 228 × 158 × 58 mm and its approximate weight is 400 g. It uses three AAA batteries, which are not supplied.

The set contains the clamp meter, a set of test leads, a temperature probe and a carry case.

At a glance

  • Measures AC and DC current up to 600 A
  • Measures AC voltage up to 600 V and DC voltage up to 600 V
  • 36 mm maximum jaw opening
  • Includes test leads, temperature probe and carry case

Specifications12

Draper
Dimensions
228 × 158 × 58 mm
In the box
Test leads, temperature probe and carry case
AC current
60 A / 600 A
DC current
60 A / 600 A
AC voltage
6 V / 60 V / 600 V
DC voltage
600 mV / 6 V / 60 V / 600 V
Resistance
6000 Ω / 6 kΩ / 60 kΩ / 600 kΩ / 6 MΩ / 60 MΩ
Maximum jaw opening
36 mm
Display and additional functions
Backlit LCD, inspection light and linear bar graph
Auto power-off
Yes
Battery
3 × AAA, not supplied
Weight
Approximately 400 g
