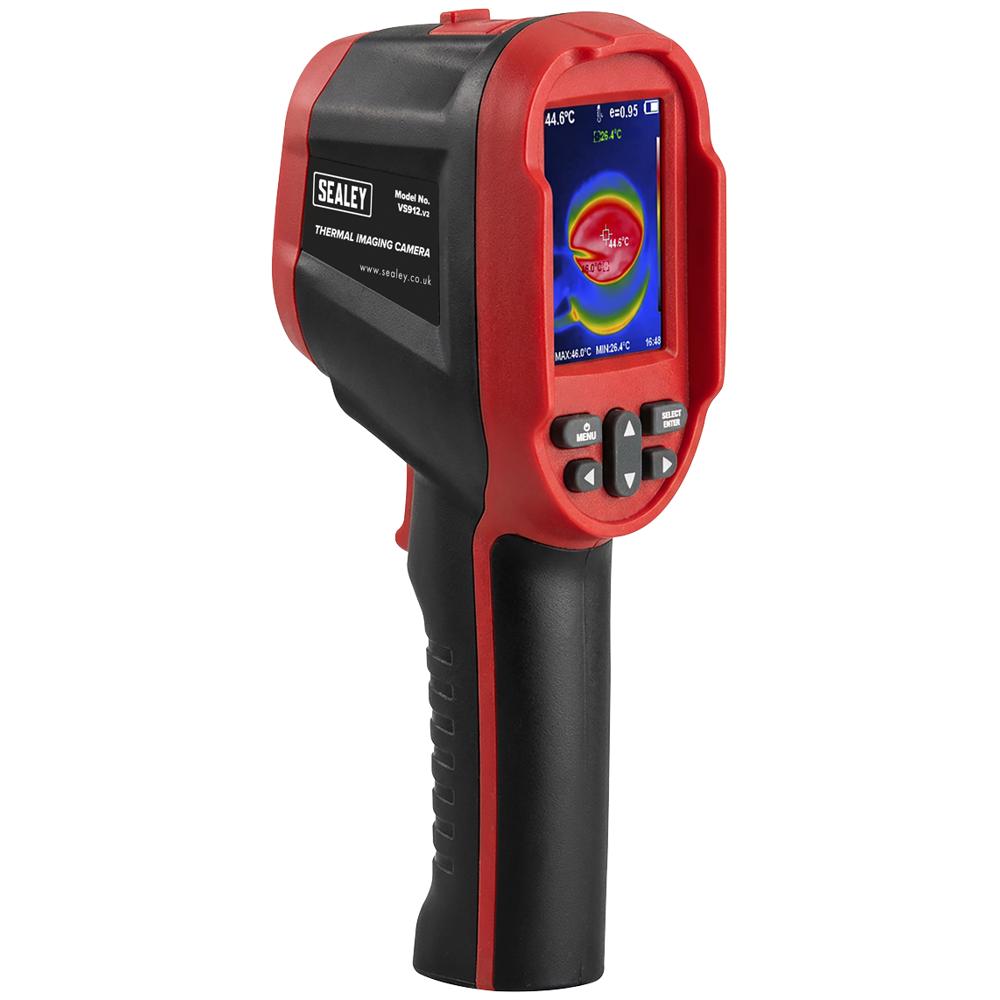

Sealey VS912 Thermal Imaging Camera

The Sealey VS912 is a thermal imaging camera for identifying temperature variations across systems and surfaces. Its temperature range is -20°C to +550°C, and an on-screen cursor highlights temperature variations.

The camera combines visual imaging with thermal overlays adjustable to 0%, 25%, 50%, 75% or 100%. Five colour palettes are available: Rainbow, Iron Oxide Red, Cold Colour, Black & White, and White & Black. Infrared resolution is 120 × 90 pixels (10,800 pixels), alongside a 3-megapixel camera image.

• 70 mm screen and 26° × 19° field of view
• Focal distance: 3.2 mm, adjustable between 200–400 mm
• Adjustable emissivity from 0.1 to 1
• Rechargeable 2000 mAh battery with up to 3 hours of continuous operation
• 3 GB internal memory for captured images
• Net weight: 0.66 kg
• Supplied with a protective storage case

Applications described include diagnosing automotive faults such as heated-seat, power-window and wiring-resistance issues; inspecting electrical fixings and connections, radiators, plumbing lines and underfloor heating; and highlighting damp areas, water ingress and insulation gaps around seals, frames and windows.
