About the product

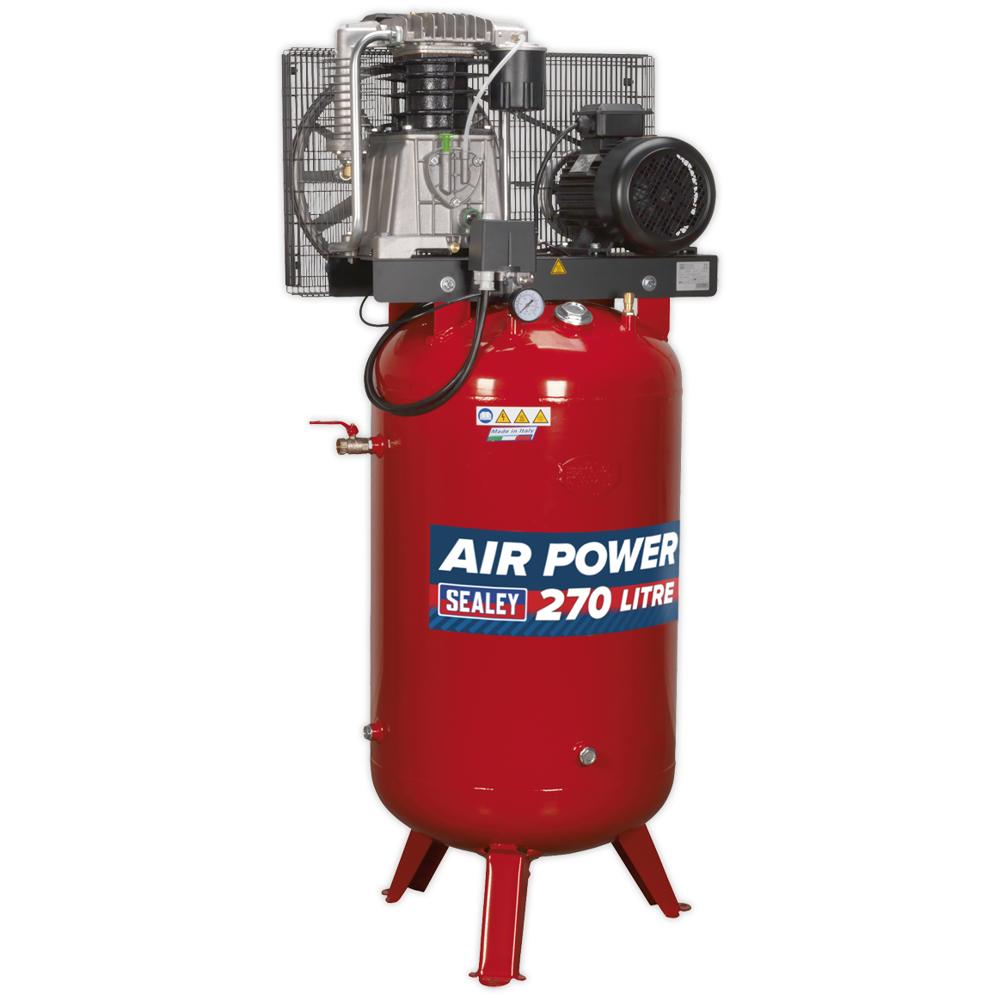

The Sealey SACV52775B is a vertical air compressor with a 270 L receiver for workshop use. It has a 2-stage pump and a 7.5 hp motor, with a pump speed of 1280 rpm.
Maximum free air delivery is 22.6 cfm (640 L/min), and air displacement is 29.3 cfm (830 L/min). Maximum pressure is 145 psi (10 bar). The compressor requires a 400 V/32 A three-phase supply, with a minimum rated supply of 32 A.
- Receiver capacity: 270 L
- Oil capacity: 1.57 L
- Outlet: 3/4" BSP female tap
- Dimensions (W x D x H): 1200 x 800 x 2100 mm
- Nett weight: 164 kg
- Full cast cylinders and an alloy head
- Heavy-duty drive guards protect the belt and flywheel; the flywheel directs air over the pump for cooling
At a glance
- 270 L receiver capacity
- 2-stage pump with a 7.5 hp motor
- Maximum free air delivery: 22.6 cfm (640 L/min)
- Maximum pressure: 145 psi (10 bar)
- 400 V/32 A three-phase supply
Specifications12
- Material
- cast iron/alloy
- Dimensions
- 1200 x 800 x 2100 mm (W x D x H)
- Pump
- 2-stage
- Motor output
- 7.5 hp
- Maximum free air delivery
- 22.6 cfm (640 L/min)
- Air displacement
- 29.3 cfm (830 L/min)
- Maximum pressure
- 145 psi (10 bar)
- Power supply
- 400 V/32 A, three-phase
- Minimum rated supply
- 32 A
- Receiver capacity
- 270 L
- Pump speed
- 1280 rpm
- Oil capacity
- 1.57 L
