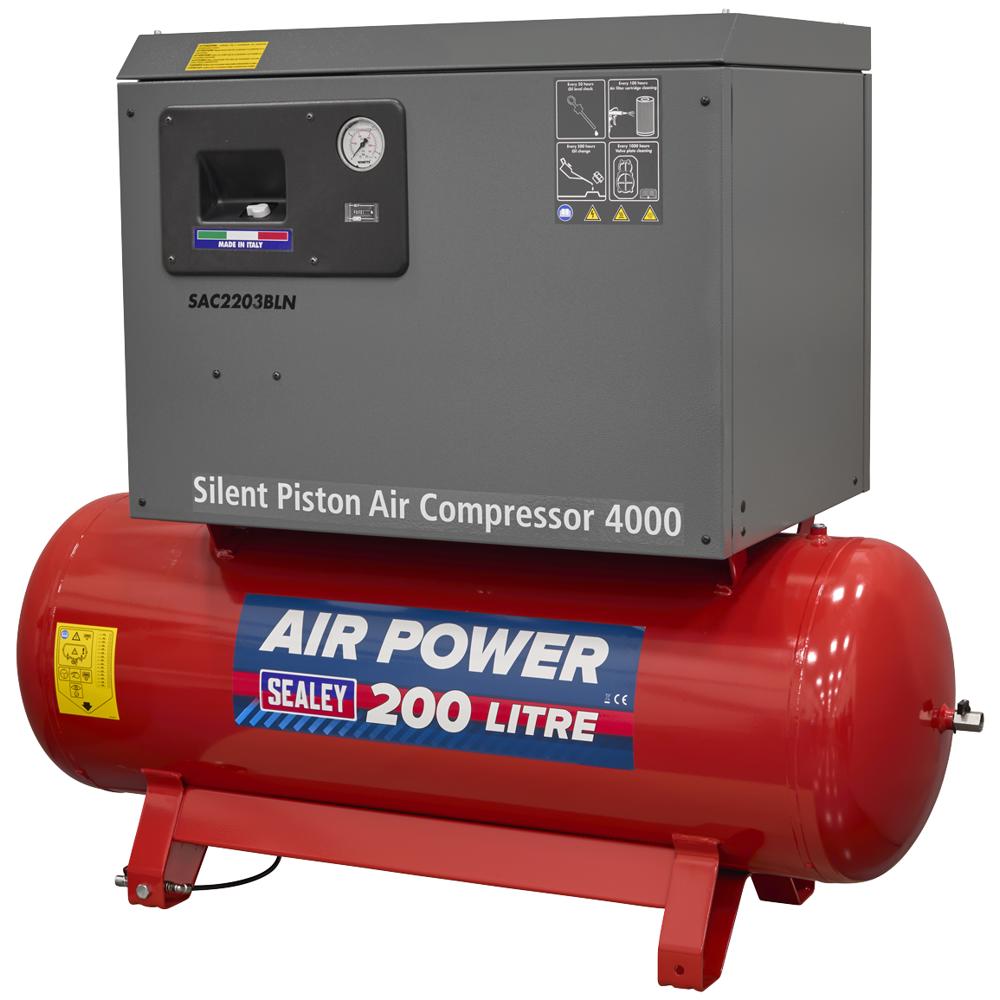

Sealey SAC2203BLN Air Compressor 200 Litre 240v

The Sealey SAC2203BLN is a 200-litre air compressor with a 3 hp, single-phase motor and a 200-litre receiver. It operates from a 230 V supply and requires a minimum 16 A rated circuit.

Its maximum free air delivery is 10.9 cfm (309 L/min), with air displacement of 15 cfm (425 L/min) and a maximum pressure of 145 psi (10 bar). The cast iron cylinder head runs at 1075 rpm. A soft start feature, automatic pressure cut-out switch and tank pressure gauge are included, along with a tachometer in the control box for monitoring usage hours. The fully enclosed, insulated cabinet protects components and reduces noise; the noise level is 68 dB(A) at 1 metre.

• Outlet: 1/2-inch BSP female tap
• Oil capacity: 0.72 L
• Dimensions: 1440 × 440 × 1210 mm
• Weight: 175 kg
• Supplied with CE certification, a test certificate and operating and maintenance documentation
