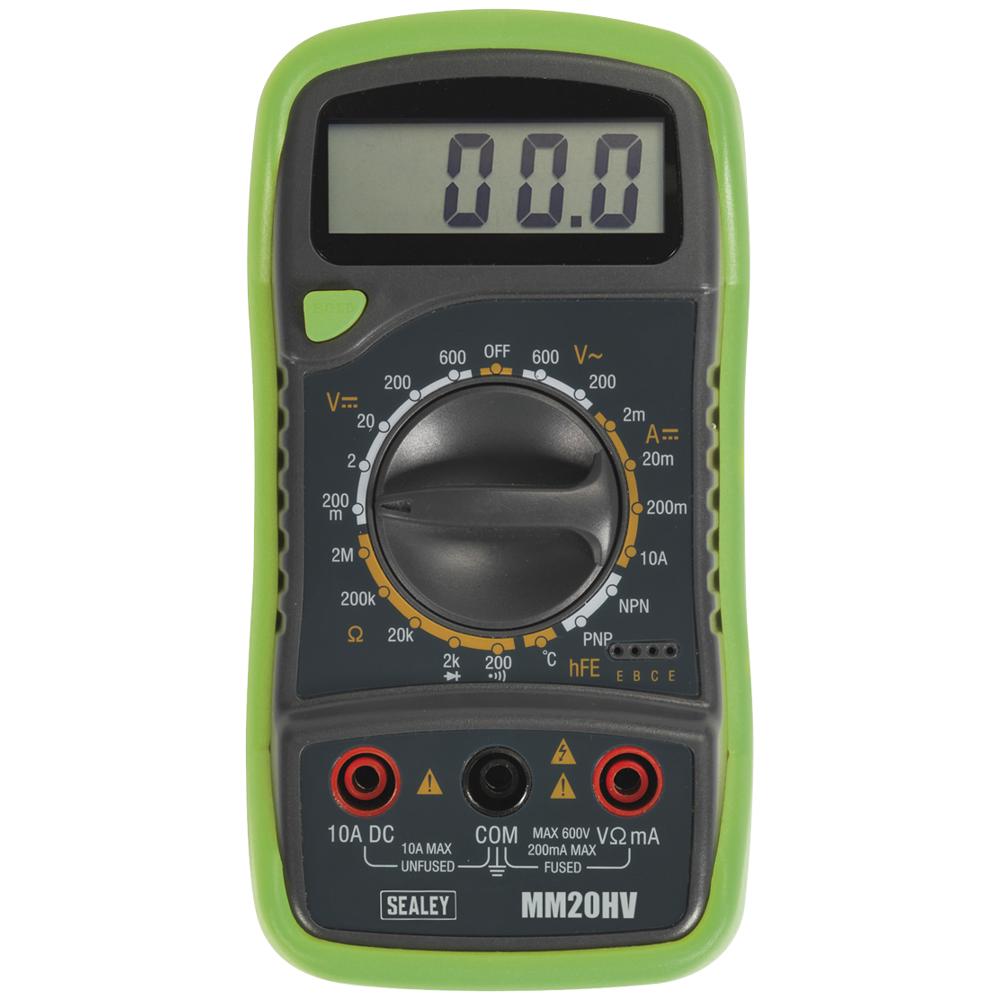

Sealey MM20HV 8 Function Digital Multimeter
See more photos

Sealey MM20HV 8 Function Digital Multimeter

Lowest price we found

£23.95

Tooled Up Delivery £5.95
Go to shop
  • Extensive range of tools at competitive prices.
  • Fast dispatch with proactive order updates.
  • Responsive customer service and hassle-free replacements.

About the product

The Sealey MM20HV is an eight-function digital multimeter for electrical diagnostics and testing. It measures AC and DC voltage, DC current, resistance and temperature, and includes audible continuity, diode and transistor testing.

Its AC voltage ranges are 200V and 600V, with ±2% accuracy. DC voltage ranges from 200mV to 600V, with accuracy from ±0.5% to ±0.8%. DC current ranges from 2mA to 10A, with accuracy from ±1% to ±2%; resistance ranges from 200Ω to 2MΩ, with accuracy from ±0.8% to ±1.2%. The temperature range is -40°C to 1000°C, with ±1% accuracy up to 400°C and ±2% above 400°C.

  • LCD with six digits, 12mm high
  • Rubber protective boot and integral stand
  • Data-hold function and low-battery indicator
  • Supplied with leads, probes, a temperature probe and one 9V battery
  • Dimensions: 140 x 70 x 35mm; weight: 260g
  • Conforms to IEC 1010

At a glance

  • Measures AC and DC voltage, DC current, resistance and temperature
  • Temperature range: -40°C to 1000°C
  • Audible continuity, diode and transistor tests
  • Data hold, low-battery indicator and integral stand

Specifications12

Sealey
Material
rubber
Dimensions
140 x 70 x 35mm
In the box
Leads and probes, temperature probe, 1 x 9V battery
Measurement functions
Eight functions
AC voltage
200V and 600V; accuracy ±2%
DC voltage
200mV, 2V, 20V, 200V and 600V; accuracy ±0.5% to ±0.8%
DC current
2mA, 20mA, 200mA and 10A; accuracy ±1% to ±2%
Resistance
200Ω, 2kΩ, 20kΩ, 200kΩ and 2MΩ; accuracy ±0.8% to ±1.2%
Temperature
-40°C to 1000°C; accuracy ±1% up to 400°C and ±2% above 400°C
Display
6 digits, 12mm digit height
Additional functions
Audible continuity, diode test, transistor test and data hold
Safety conformity
IEC 1010
