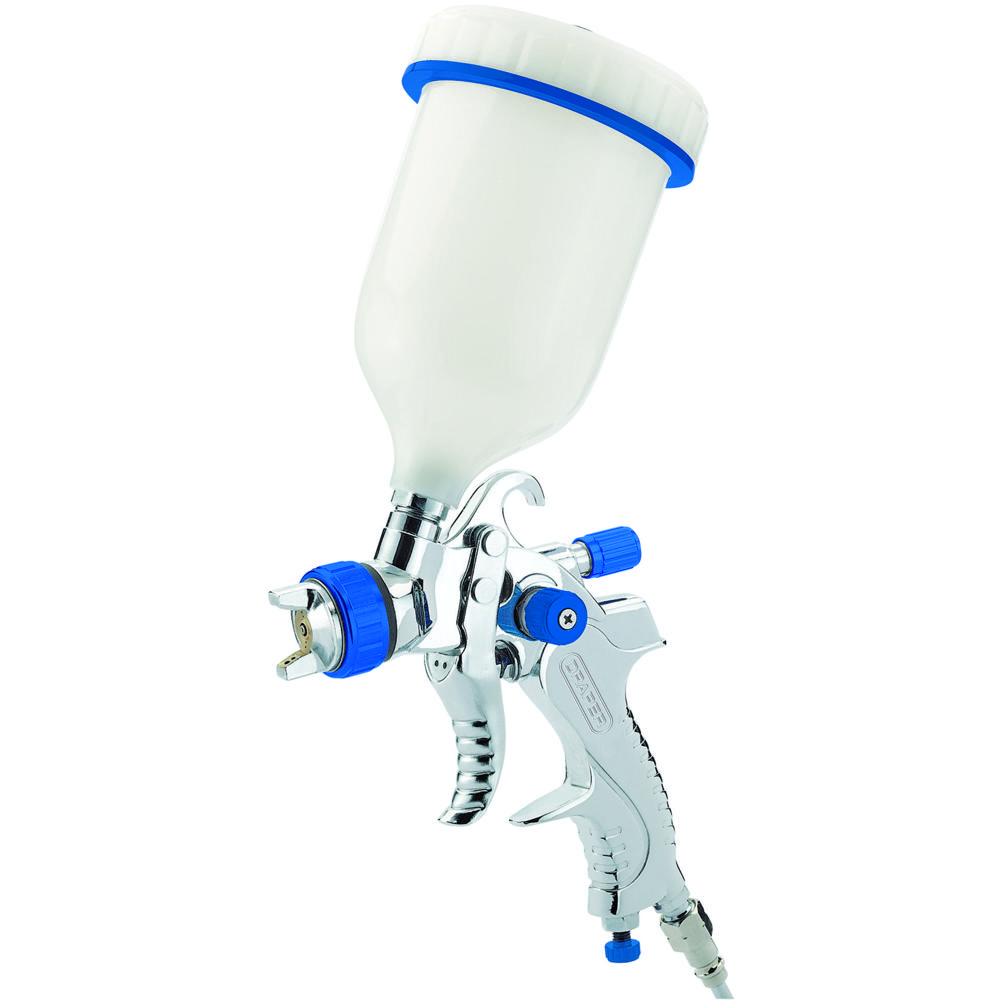

Draper GSG5-600 Gravity Feed HVLP Air Spray Gun
See more photos

Draper GSG5-600 Gravity Feed HVLP Air Spray Gun

Lowest price we found

£82.95

Tooled Up Delivery £5.95
Go to shop
  • Extensive range of tools at competitive prices.
  • Fast dispatch with proactive order updates.
  • Responsive customer service and hassle-free replacements.

About the product

The Draper GSG5-600 is a gravity-feed HVLP air spray gun for general-purpose spraying across professional and semi-professional projects. Its aluminium body works with all paint types, including water-based formulations.

The 1.4 mm fluid nozzle is suited to applying primers, topcoats and general finishes. Variable fan pattern control and fully adjustable fluid flow allow the spray characteristics to be adjusted. HVLP technology is described as helping maximise paint transfer efficiency while minimising overspray and bounce-back.

  • Operating pressure: 43 psi (3 Bar); average air consumption: 14.5 cfm (400 l/min).
  • Fluid delivery rate: 190–250 ml/min; air inlet: 1/4-inch BSP.
  • Weight: 0.55 kg; compatible with most workshop compressors.
  • Includes one spray gun, one cleaning brush and one service spanner.

Spare nozzle, needle and cap sets are available separately for future servicing.

At a glance

  • 1.4 mm fluid nozzle
  • Variable fan pattern and adjustable fluid flow
  • For all paint types, including water-based formulations
  • Includes a cleaning brush and service spanner

Specifications12

Draper
Material
aluminium
Compatible with
Most workshop compressors
In the box
Spray gun, cleaning brush and service spanner
Technology
HVLP (High Volume Low Pressure)
Applications
General-purpose spraying, including primers, topcoats and finishing work
Paint compatibility
All paint types, including water-based formulations
Operating air pressure
43 psi (3 Bar)
Average air consumption
14.5 cfm (400 l/min)
Fluid delivery rate
190–250 ml/min
Air inlet
1/4-inch BSP
Weight
0.55 kg
Controls
Variable fan pattern control and fully adjustable fluid flow
