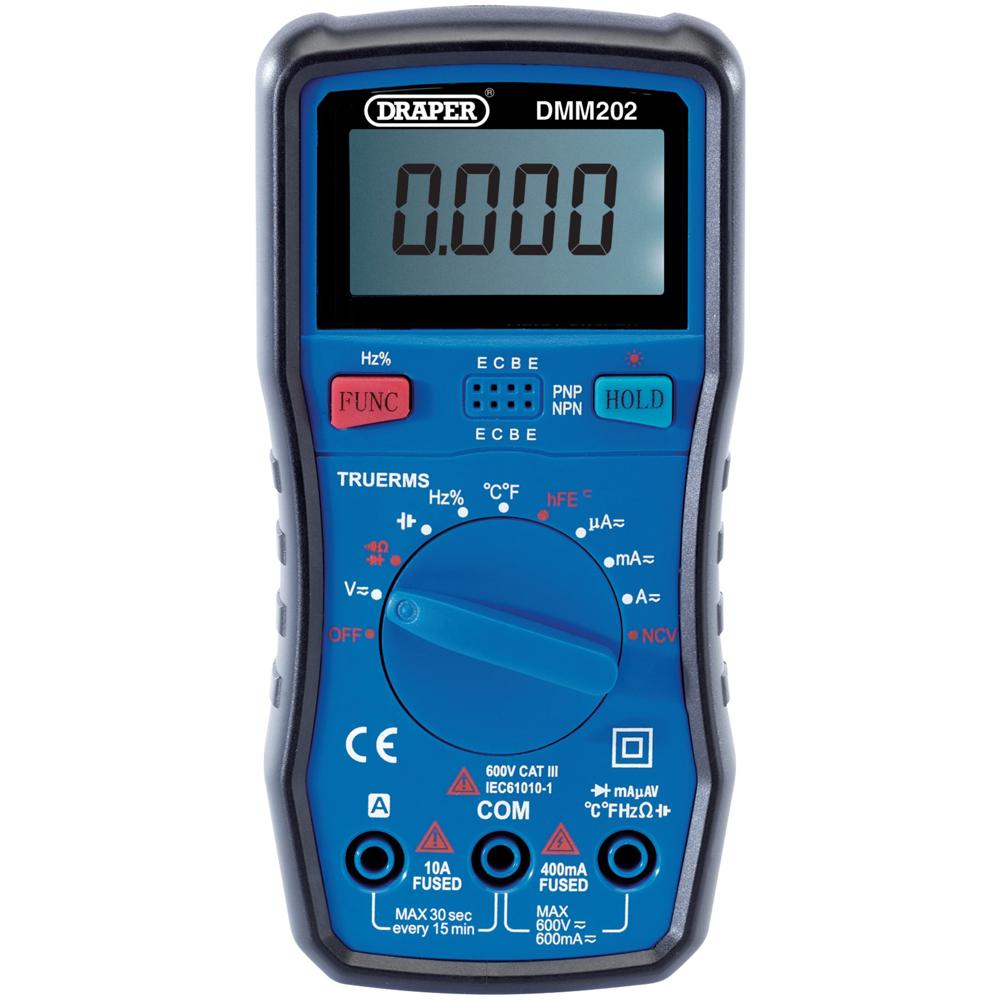

Draper DMM202 Digital Multimeter
See more photos

Draper DMM202 Digital Multimeter

Lowest price we found

£40.95

Tooled Up Delivery £5.95
Go to shop
  • Extensive range of tools at competitive prices.
  • Fast dispatch with proactive order updates.
  • Responsive customer service and hassle-free replacements.

About the product

The Draper DMM202 is an auto-ranging digital multimeter for electrical testing and diagnostics. It measures AC and DC voltage and current, resistance, capacitance, frequency, temperature and continuity. True RMS measurement and 5999-count resolution are included.

Features include non-contact voltage detection, a backlit LCD, data hold, automatic power-off and a continuity buzzer. Diode testing, duty ratio and dwell are also listed. The AC voltage ranges are 6 V, 60 V and 600 V; DC voltage ranges are 600 mV, 6 V, 60 V and 600 V. AC and DC current ranges run from 600 µA to 10 A. Resistance ranges run from 600 Ω to 60 MΩ, and frequency ranges from 100 Hz to 10 MHz.

Capacitance ranges are 10 nF, 100 nF, 1 µF, 10 µF, 100 µF, 1000 mF, 10 mF and 100 mF. The temperature ranges differ in the product information. Dimensions are 172 mm × 174 mm × 50 mm and approximate weight is 361 g. Supplied items are the multimeter, test leads and a temperature probe.

At a glance

  • Auto-ranging with True RMS measurement and 5999-count resolution
  • AC and DC voltage measurement up to 600 V
  • AC and DC current measurement up to 10 A
  • Non-contact voltage detection and continuity buzzer
  • Backlit LCD, data hold and automatic power-off
  • Includes test leads and a temperature probe

Specifications12

Draper
Dimensions
172 mm × 174 mm × 50 mm
In the box
1 auto-ranging digital multimeter, 1 set of test leads and 1 temperature probe
Measurement
True RMS; 5999-count resolution
AC voltage
6 V, 60 V and 600 V
DC voltage
600 mV, 6 V, 60 V and 600 V
AC and DC current
600 µA, 6000 µA, 60 mA, 600 mA, 6 A and 10 A
Resistance
600 Ω, 6 kΩ, 60 kΩ, 600 kΩ, 6 MΩ and 60 MΩ
Capacitance
10 nF, 100 nF, 1 µF, 10 µF, 100 µF, 1000 mF, 10 mF and 100 mF
Frequency
100 Hz, 1000 Hz, 10 kHz, 100 kHz, 1 MHz and 10 MHz
Functions
Non-contact voltage detection, continuity buzzer, diode test, data hold, automatic power-off, duty ratio and dwell
Temperature
Temperature measurement; the listed ranges differ
Weight
361 g (approx.)
