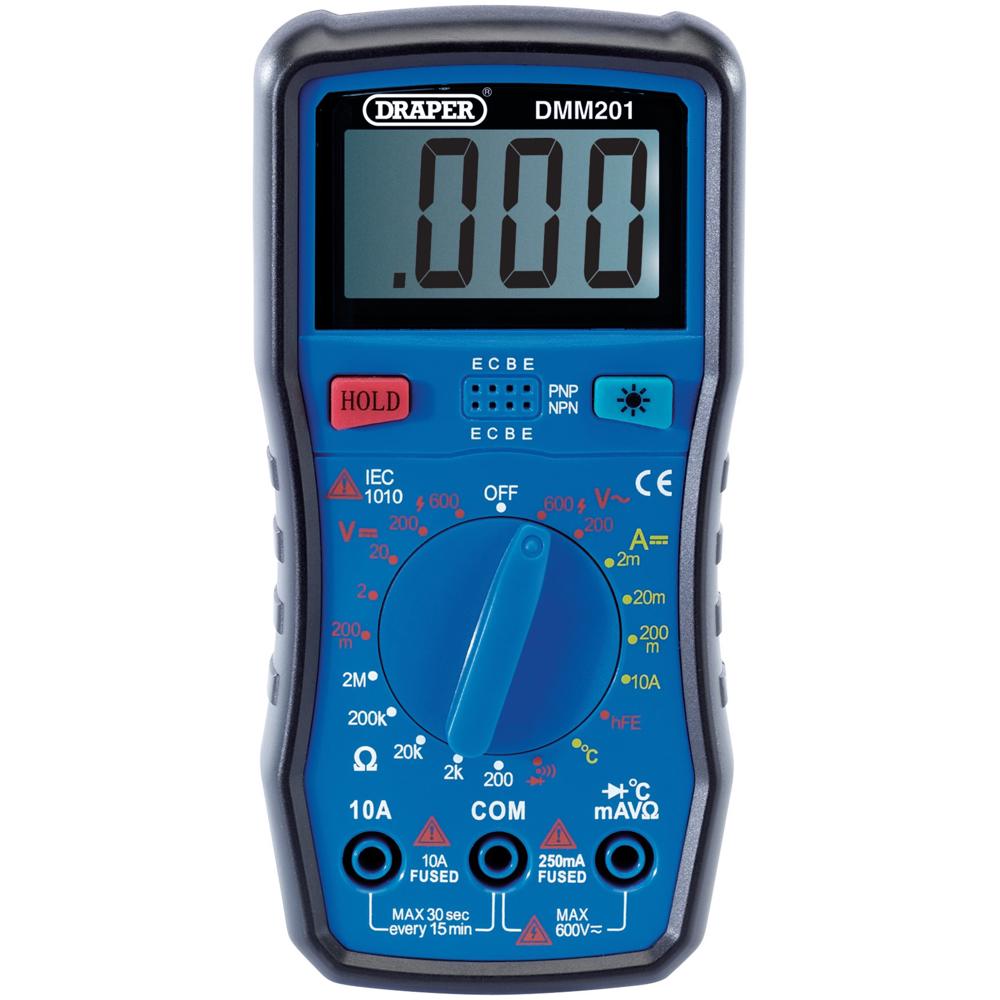

Draper DMM201 Digital Multimeter
See more photos

Draper DMM201 Digital Multimeter

Lowest price we found

£30.95

Tooled Up Delivery £5.95
Go to shop
  • Extensive range of tools at competitive prices.
  • Fast dispatch with proactive order updates.
  • Responsive customer service and hassle-free replacements.

About the product

The Draper DMM201 is a manual-ranging digital multimeter for electrical testing. It measures DC voltage, DC current, AC voltage, resistance, temperature and diode parameters, and includes hFE testing, continuity buzzer and duty ratio functions.

The backlit LCD, data hold function and automatic power off support measurement and recording. DC voltage ranges are 200mV, 2V, 20V, 200V and 600V; DC current ranges are 2mA, 20mA, 200mA and 10A. AC voltage ranges are 200V and 600V, while resistance ranges from 200O to 2MO. Temperature measurement covers -20°C to 1000°C.

  • Dimensions: 150mm x 74mm x 43mm
  • Weight: approximately 233g
  • Includes test leads and temperature probe
  • Requires one PP3 9V battery, which is not supplied

At a glance

  • Measures DC voltage, DC current, AC voltage and resistance
  • Temperature range: -20°C to 1000°C
  • Backlit LCD with data hold and automatic power off
  • Supplied with test leads and temperature probe

Specifications11

Draper
Dimensions
150mm x 74mm x 43mm
In the box
Digital multimeter, test leads and temperature probe
Ranging
Manual ranging
DC voltage ranges
200mV, 2V, 20V, 200V and 600V
DC current ranges
2mA, 20mA, 200mA and 10A
AC voltage ranges
200V and 600V
Resistance ranges
200O, 2kO, 20kO, 200kO and 2MO
Temperature range
-20°C to 1000°C
Weight
Approximately 233g
Battery
1 x PP3 9V battery; not supplied
Functions
Backlit LCD, automatic power off, continuity buzzer, data hold, hFE testing, duty ratio, diode testing
