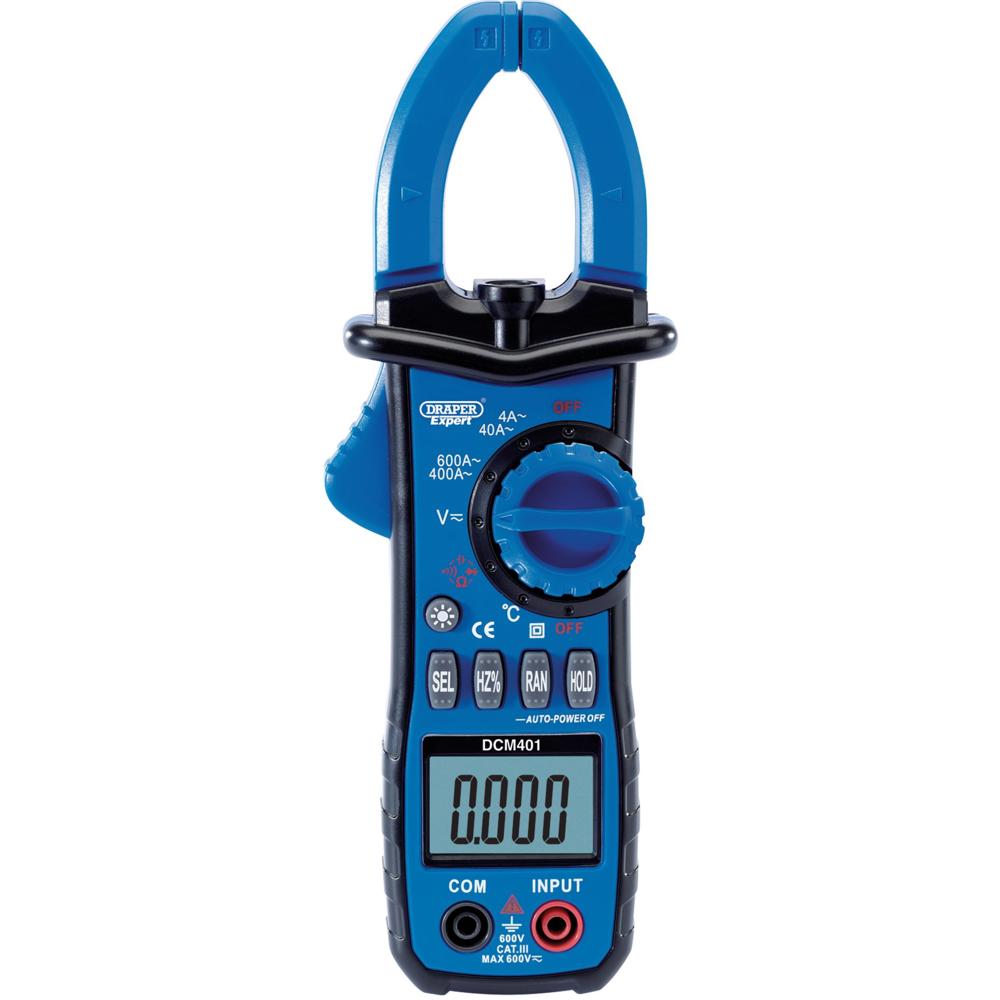

Draper DCM401 Digital Clamp Meter
See more photos

Draper DCM401 Digital Clamp Meter

Lowest price we found

£51.95

Tooled Up Delivery £5.95
Go to shop
  • Extensive range of tools at competitive prices.
  • Fast dispatch with proactive order updates.
  • Responsive customer service and hassle-free replacements.

About the product

The Draper DCM401 is a digital clamp meter for electrical testing and fault-finding across commercial and domestic installations. It offers automatic and manual ranging, with measurements for voltage, current, resistance, diode, continuity, capacitance, frequency, duty cycle and temperature.

AC current ranges are 4 A, 40 A, 400 A and 600 A. AC and DC voltage ranges run from 400 mV to 600 V. The jaw opening is up to 36 mm in diameter, and the temperature range is -20°C to 1000°C.

  • Backlit LCD screen and inspection light
  • Automatic power-off and data hold
  • Dimensions: 230 × 156 × 62 mm; approximate weight: 488 g
  • Requires 3 AAA batteries, which are not supplied
  • Includes test leads, temperature probe and protective carry case

At a glance

  • Measures AC current up to 600 A
  • AC and DC voltage ranges up to 600 V
  • 36 mm maximum jaw opening
  • Temperature range: -20°C to 1000°C

Specifications11

Draper
Dimensions
230 mm × 156 mm × 62 mm
In the box
Test leads, temperature probe and protective carry case
Ranging
Automatic and manual
AC current
4 A, 40 A, 400 A and 600 A
AC and DC voltage
400 mV, 4 V, 40 V, 400 V and 600 V ranges
Measurement functions
Resistance, diode, continuity, capacitance, frequency, duty cycle and temperature
Temperature range
-20°C to 1000°C
Display and light
Backlit LCD screen and inspection light
Additional functions
Automatic power-off and data hold
Battery
3 × AAA batteries, not supplied
Weight
Approximately 488 g

Price history

Price at the shop, last 78 days

The price has stayed at £51.95 since 19 August.
