Butler Technik Victron Energy Mount Pro Modular Stainless Steel Mounting System for Campervan RV Marine Victron Electrical Systems - Module A | PLA050220060KIT

The Butler Technik modular mounting system is a stainless steel plate for fitting Victron Energy devices. It supports installations in campervan, marine and off-grid electrical systems, and allows a setup to be pre-wired outside the vehicle before final installation using four mounting holes.

• The plate is made from marine-grade 316 stainless steel and measures 470 × 220 × 35 mm, with a thickness of 1.5 mm.
• It has 25 mm cable entry holes with grommets, an M8 common negative stud and cable tie slots.
• The offset design allows airflow and space for cable routing. The system can be extended with additional modules using its slot and bolt design.
• It is designed for Victron SmartSolar, Orion-Tr, SmartShunt and MEGA Fuse Holders. Top-row holes support any Orion-Tr DC-DC Converter or Smart Charger, or SmartSolar or BlueSolar MPPT up to 150/45. Bottom-row holes support the same options, or listed combinations involving a 75/15 SmartSolar MPPT, 500A SmartShunt and MEGA Fuse Holders.

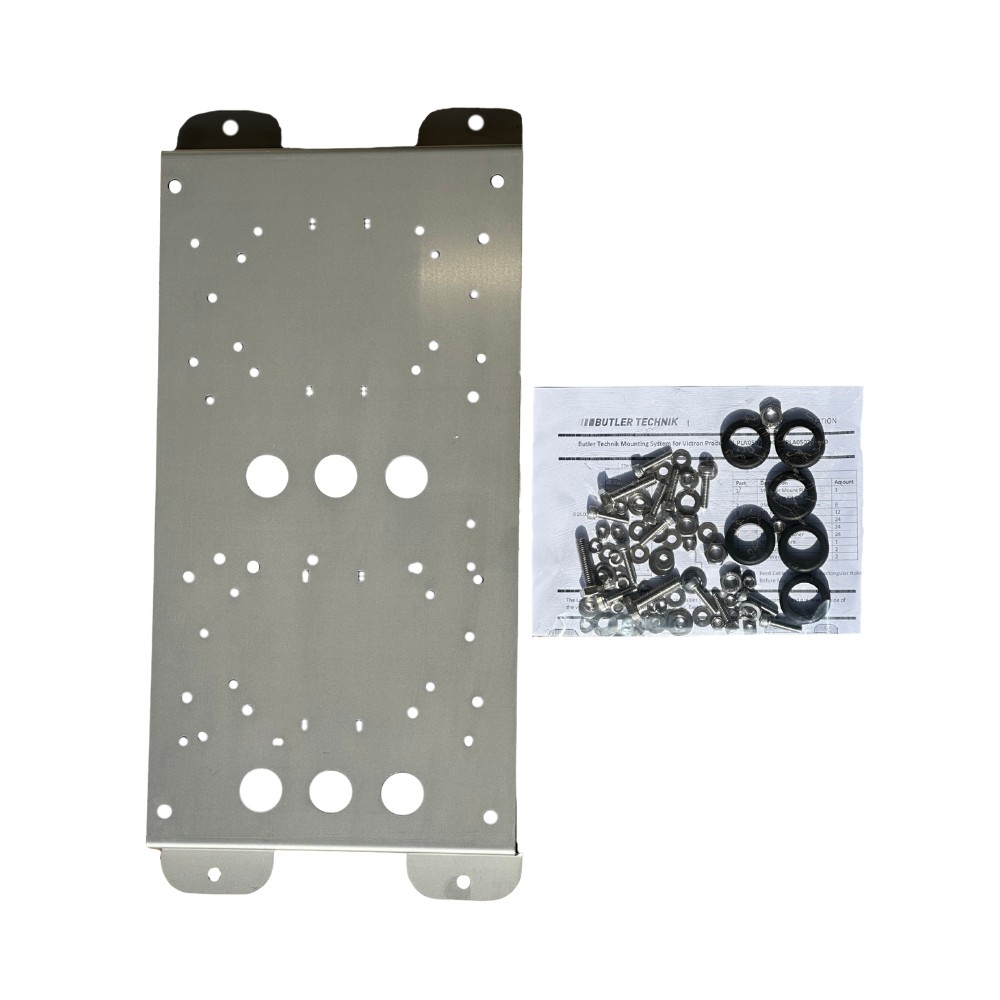

The kit includes the mounting plate, a fixing kit for Victron devices and the M8 common negative, and installation instructions. Victron Energy devices are not included and must be purchased separately. Additional or joined modules shown in images are sold separately.
